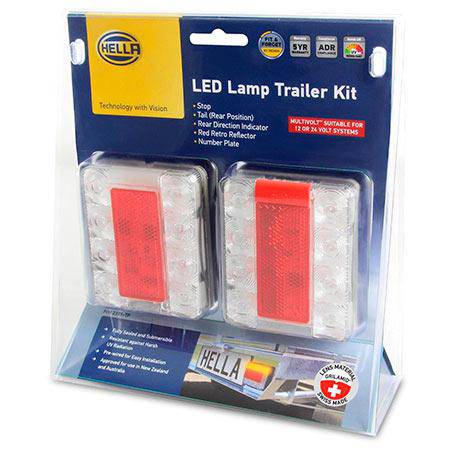

Hella 2395TP LED Combination Trailer Lamp Kit

The Hella 2395TP LED Combination Trailer Lamp Kit offers a reliable and maintenance-free lighting solution for trailers, utes, and small trucks. Designed for durability and ease of installation, this kit ensures optimal visibility and compliance with road regulations in New Zealand and Australia.

Key Features:

• Comprehensive Lighting Functions: Includes stop, rear position, rear direction indicator, and number plate illumination.

• Integrated Reflex Reflectors: Enhances visibility with an 18cm² red retro reflector.

• Multivolt™ Technology: Operates efficiently on both 12V and 24V systems.

• Robust Construction: Features impact and UV-resistant Grilamid® lenses, ensuring longevity even under harsh conditions.

• Water and Dust Resistant: Fully sealed design with IP6K7 and IP6K9K ratings, suitable for high-pressure washing and temporary immersion.

• Easy Installation: 'Click-in' mounting base with multiple fixing points for flexible and convenient setup.

• ADR Compliant: Meets all relevant Australian Design Rules, ensuring road legality

Kit Contents:

• 1 x 2394 Rear Position / Stop / Indicator Lamp

• 1 x 2395 Rear Position / Stop / Indicator / Number Plate Lamp

• 8 x Crimp Connectors with Heat Shrink Insulation

Specifications:

• Part Number: 2395TP

• Cable Length: 0.5 meters

• Dimensions: 96mm (H) x 80mm (W)

• Operating Voltage: 12V / 24V DC

• Power Consumption: Stop: 2W; Rear Position / Number Plate: 1W; Indicator: 2W

• Protection: Reverse polarity and transient spike circuit protection

• Warranty: 5-year manufacturer's warranty
