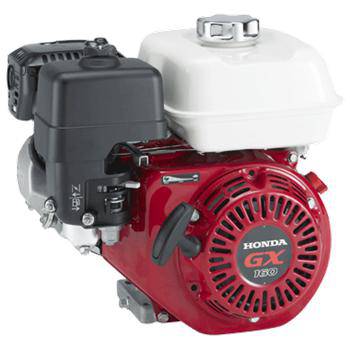

Honda Gx160 3/4" 6:1 Reduction Recoil Start

Quality and performance come standard

Honda’s GX series engines are legendary for superior reliability and performance and the GX160 is no exception. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance.

Being the Flagship model in Honda's world-renowned GX Engine range, the GX160 can be used in all sorts of applications. Pressure washers and construction/industrial equipment, generators and commercial lawncare equipment; its uses are wide ranging.

Fuel efficient with high output

The GX160's Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency. It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it

Easy to use and maintain

A ball bearing-supported crankshaft and precision engineered components result in greater stability and lower vibration for you, no matter what the application.

The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine that incorporates a large capacity, multi-chamber exhaust system.

And with a simple throttle control, large fuel tank and automotive type fuel cap, dual oil drains and fills, an easily accessible spark plug and heavy duty recoil starter your engine will be easy to upkeep.

SPECS

MODEL	GX160
TYPE	4-stroke, overhead valve, single-cylinder, horizontal shaft
BORE & STROKE	68 x 45mm
DISPLACEMENT	163cm3
COMPRESSION RATIO	8.5:1
NET POWER	3.6kW (4.8HP) at 3,600rpm
CONTINUOUS RATED POWER	2.9kW (3.9HP) at 3,600rpm
MAXIMUM NET TORQUE	10.3Nm at 2,500rpm
IGNITION SYSTEM	Transistorised magneto ignition
STARTING SYSTEM	Recoil (Electric Starter Optional)
COOLING SYSTEM	Forced-Air
PTO SHAFT ROTATION	Counter-clockwise (from P.T.O. side)
FUEL CONSUMPTION AT RATED POWER	1.4 L/h at 3,600rpm
RECOMMENDED FUEL	Unleaded
LUBRICATION SYSTEM	Splash
RECOMMENDED OIL	10W/30 API SG
OIL CAPACITY	0.6L
FUEL TANK CAPACITY	3.1L
DIMENSIONS	312 x 362 x 346mm
DRY WEIGHT	15kg
