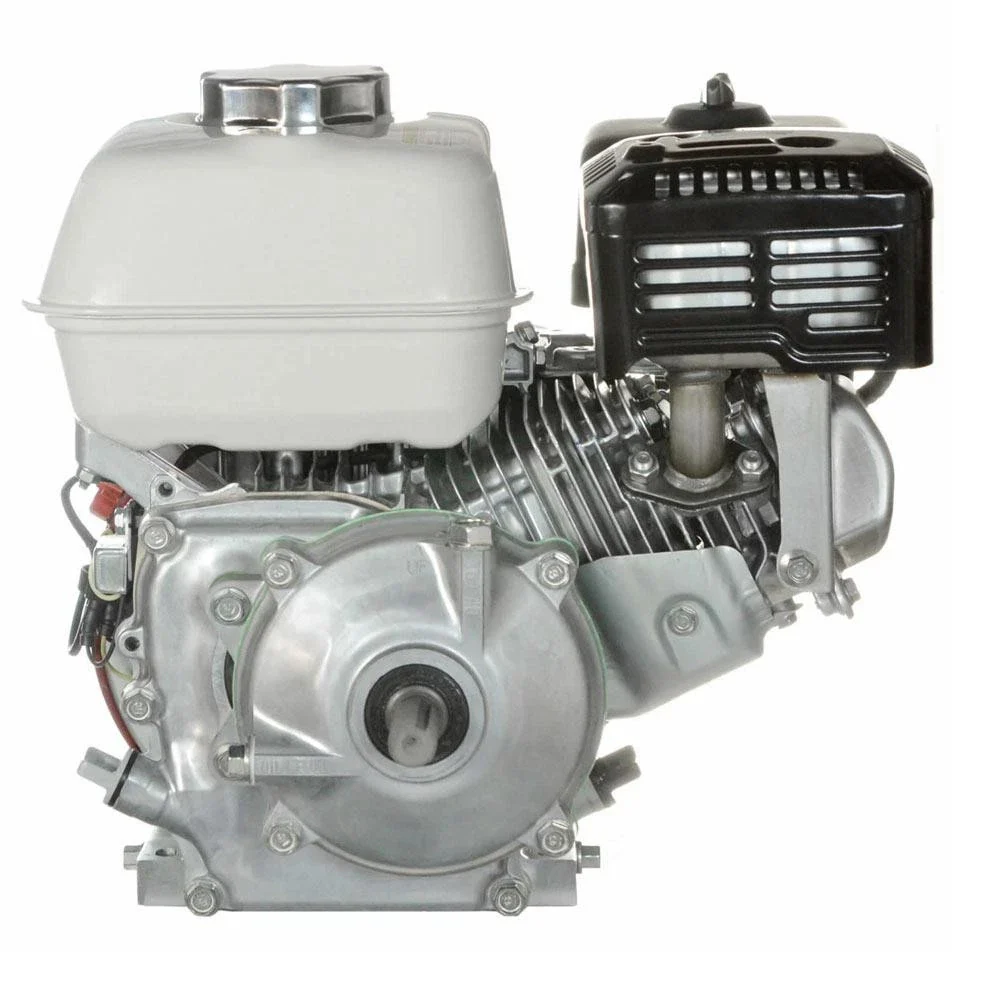

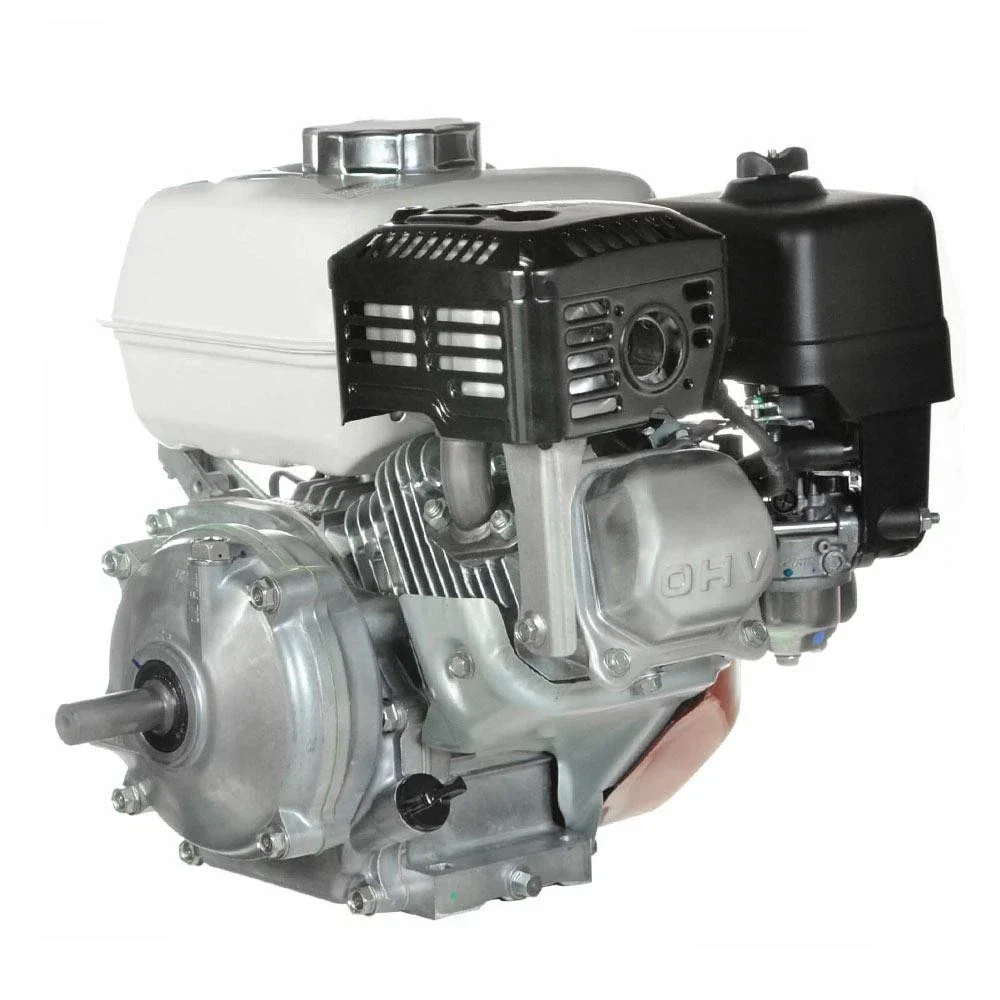

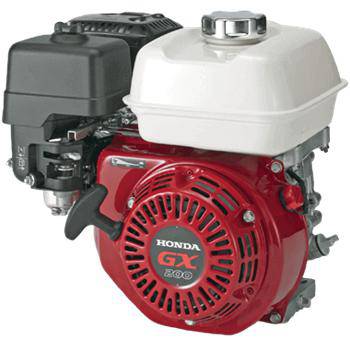

Honda GX200 3/4” Shaft, Recoil Start, 6:1 Reduction Gearbox

Legendary Honda Reliability – Compact Power for Demanding Jobs

Experience the performance and reliability of Honda’s iconic GX series with the GX200 engine. Built for hard work and designed to last, this 196cc 4-stroke powerhouse is the engine of choice for pressure washers, generators, construction machinery, industrial, and agricultural equipment.

• Fuel Efficient, High Output:
  The GX200’s precision camshaft ensures accurate valve timing, optimal fuel efficiency, and power output. Honda’s renowned OHV (overhead valve) design delivers excellent power transfer and efficiency where you need it most.

• Smooth, Quiet Operation:
  With a ball bearing-supported crankshaft, cast iron cylinder sleeve, and helical cut gears, the GX200 runs smoothly and quietly. Lightweight, noise-reducing materials and a forged steel crankshaft mean reduced vibration for effortless long-term use.

• Built to Last:
  The GX200 features a large fuel tank, oil alert system, easy-access spark plug, and large fuel cap for simple maintenance and extended engine life.

Key Specifications:

• Type: 4-stroke OHV, single-cylinder, horizontal shaft

• Displacement: 196cm³

• Bore x Stroke: 68 x 54mm

• Compression Ratio: 8.5:1

• Power: 4.1kW (5.5HP) @ 3600rpm

• Continuous Rated Power: 3.7kW (5.0HP) @ 3600rpm

• Maximum Net Torque: 12.4Nm @ 2500rpm

• Ignition System: Transistorised magneto

• Starting System: Recoil (Electric optional)

• Cooling: Forced-air

• PTO Rotation: Counter-clockwise

• Fuel Consumption: 1.7L/h @ 3600rpm

• Oil Capacity: 0.6L (10W/30 API SG recommended)

• Fuel Tank Capacity: 3.1L

• Dimensions (LxWxH): 313 x 376 x 346mm

• Dry Weight: 16.2kg

Common Applications:
Pressure washers, generators, construction equipment, pumps, industrial/agricultural machinery, and more.
