Hose Reel - A Frame Bar Style 46 Meter
HomeStore

Hose Reel - A Frame Bar Style 46 Meter

Hose Reel - A Frame Bar Style 46 Meter

$78.89

Original: $225.39

-65%
Hose Reel - A Frame Bar Style 46 Meter—

$225.39

$78.89

The Story

Heavy Duty A Frame Crank Reel with 46 meter hose capacity (3/8")



Features:

  • Universal 130mm hole centre foot print
  • High gloss powder coated finish
  • Extra heavy duty 6 point locking pin and adjustable rubber friction brake
  • Dual heavy duty sealed axle ball bearing with stainless steel hardware
  • High flow stainless steel swivel with parker Viton O-Rings
  • Reversible handle and swivel, lets you switch sides for best mounting option
  • Optional Hose guide to guard hose from relaod damage (2100462)
  • Optional 12 volt power rewind kit. Includes mounting bracket, ring gear and hardware (103166)



Specifications:

  • Capacity 46 metres of standard 3/8" hose
  • Pressure to 5075 Psi
  • Flow to 80 l/min.
  • Temp to 150 C
  • Inlet 1/2" FNPT
  • Outlet 1/2" FNPT
  • Weight

    Options:

    • 125 85.402.003    46 metres
    • 125 85.402.152    92 metres
    • 125 85.402.157  138 metres

    Dimensions:

    Disc: 450mm

    Length: 387mm

    Width: 315mm

    Height: 473.6mm

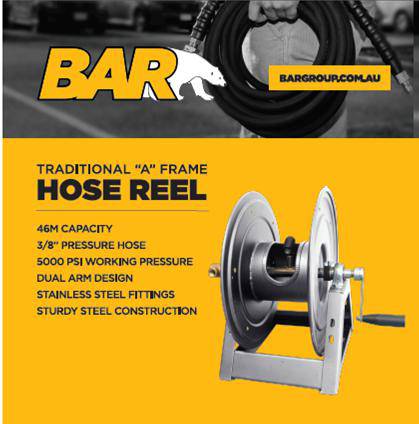

    Hose Reel - A Frame Bar Style 46 Meter - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    Heavy Duty A Frame Crank Reel with 46 meter hose capacity (3/8")



    Features:

    • Universal 130mm hole centre foot print
    • High gloss powder coated finish
    • Extra heavy duty 6 point locking pin and adjustable rubber friction brake
    • Dual heavy duty sealed axle ball bearing with stainless steel hardware
    • High flow stainless steel swivel with parker Viton O-Rings
    • Reversible handle and swivel, lets you switch sides for best mounting option
    • Optional Hose guide to guard hose from relaod damage (2100462)
    • Optional 12 volt power rewind kit. Includes mounting bracket, ring gear and hardware (103166)



    Specifications:

    • Capacity 46 metres of standard 3/8" hose
    • Pressure to 5075 Psi
    • Flow to 80 l/min.
    • Temp to 150 C
    • Inlet 1/2" FNPT
    • Outlet 1/2" FNPT
    • Weight

      Options:

      • 125 85.402.003    46 metres
      • 125 85.402.152    92 metres
      • 125 85.402.157  138 metres

      Dimensions:

      Disc: 450mm

      Length: 387mm

      Width: 315mm

      Height: 473.6mm
