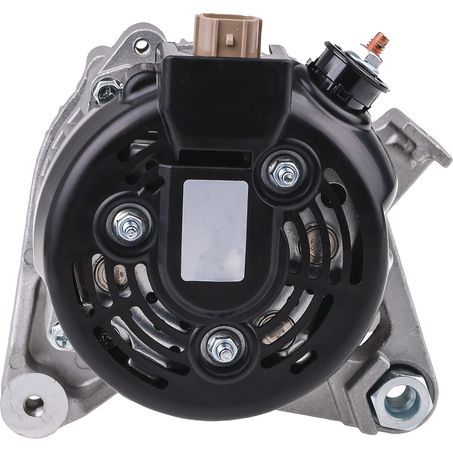

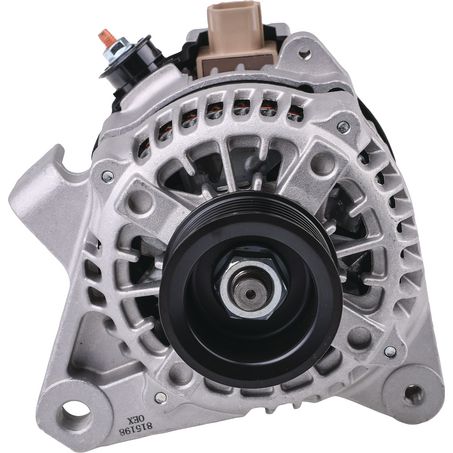

OEX Alternator 12V 80A Denso Style (DXA565)

The OEX DXA565 Alternator is a high-quality, robust replacement alternator designed to meet or exceed OEM specifications. Built for reliability and longevity, this alternator is ideal for a wide range of Toyota vehicles fitted with Denso-style units. Its superior build ensures consistent performance in both passenger and light commercial applications.

---

Key Features

• Voltage: 12V

• Amperage: 80A

• Mount Type: Twin Leg

• Regulator Type: Internal

• Pulley: 7-Groove, 59mm Diameter

• Adjusting Hole Diameter: M8 x 1.25

• Pivot Hole Diameter: 10.5mm

• Mount Center to Center: 165mm

• Inside Mounting Legs: 53mm

• Weight: 6.1kg

• Plug Type: 3-pin

• UPC Code: 9315275838823

Warranty:

• 3-year warranty for passenger vehicles

• 1-year warranty for commercial vehicles

---

Vehicle Compatibility

The DXA565 alternator is suitable for a variety of Toyota vehicles equipped with 1GR-FE 4.0L V6 engines. Confirmed fitments include:

• Toyota Hilux (GGN15, GGN25) – 2005–2015, 4.0L V6

• Toyota Prado (GRJ120, GRJ150) – 2003–2022, 4.0L V6

• Toyota Fortuner (GGN155) – 2015–2022, 4.0L V6

• Toyota Land Cruiser 120, 150 Series – 2003–2022, 4.0L V6

• Toyota FJ Cruiser (GSJ15) – 2011–2018, 4.0L V6

Always check your vehicle’s engine and plug configuration to confirm compatibility.
