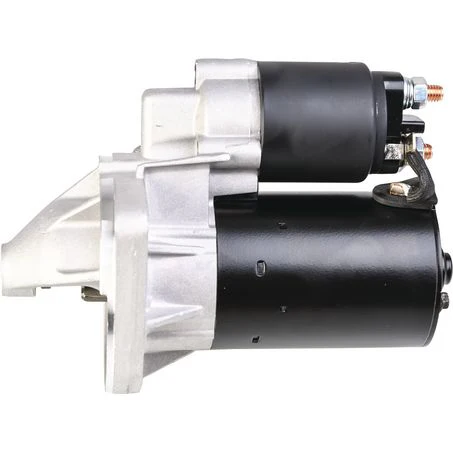

OEX Starter Motor 12V 10Th CW Bosch Style – BXS0102

Upgrade your vehicle’s starting performance with the OEX Starter Motor BXS0102. Designed in the reliable Bosch style, this 12V starter motor features 10 teeth and a clockwise (CW) rotation, making it a direct replacement for a wide range of vehicles and machinery. OEX is trusted across New Zealand for its durability, high cranking power, and robust design, ensuring dependable starts every time—even in demanding environments.

Technical Specifications

• Voltage: 12V

• Power Rating: 1.4 kW

• Rotation: Clockwise (CW)

• Number of Teeth: 10

• Flange Diameter: 103 mm

• Mount Centres (A): 134 mm

• Mount Hole Diameter: 11 mm

• Overall Length: 198 mm

• Pinion at Rest: 13 mm

• Pinion Diameter: 27 mm

• Starter Mount Type: 2 Hole

• Weight: 4.22 kg

• Suits Unit Make: Bosch

• Note: Will replace Bosch style 9-tooth starters and Mitsubishi MXS2004 12-tooth starters

Ford Falcon Series:

• XP (1965–1966): 2.8L & 3.3L OHV 6-cyl

• XR (1966–1968): 3.3L OHV 6-cyl

• XT (1968–1969): 3.1L & 3.6L OHV 6-cyl

• XA (1972–1973): 4.1L 250 cu.in OHV 6-cyl

• XE (1982–1984): 4.1L 250 cu.in OHV 6-cyl

• XF (1984–1993): 4.1L 250 cu.in OHV 6-cyl

• XG (1993–1996): 4.0L Intech SOHC 6-cyl

• XH (1996–1999): 4.0L Intech SOHC 6-cyl

• ED (1993–1994): 4.0L Intech SOHC 6-cyl

• BA (2002–2004): 4.0L Barra 182 DOHC 6-cyl

• BF (2005–2008): 4.0L Barra 190 & 245T DOHC 6-cyl (including XR6 & XR6 Turbo

Ford Fairlane Series:

• XD (1979–1982): 4.1L 250 cu.in OHV 6-cyl

• NC (1991–1995): 3.9L & 4.0L Intech SOHC 6-cy

Ford Fairmont Series:

• XE (1982–1984): 4.1L 250 cu.in OHV 6-cyl

Ford Cortina:

• Mk3 TD: 3.3L 200 cu.in OHV 6-cyl

Ford Territory:

• SX & SY (2004–2011): 4.0L Barra 190 & 245T DOHC 6-cyl (including AWD and Turbo models)
