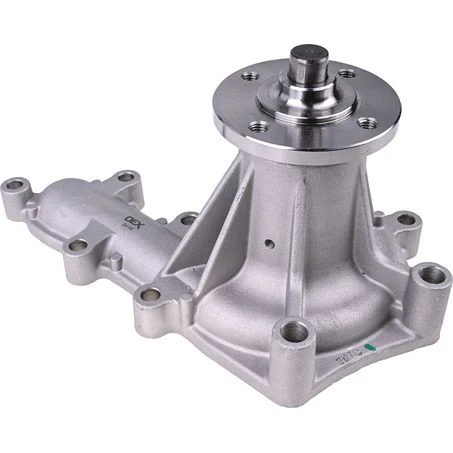

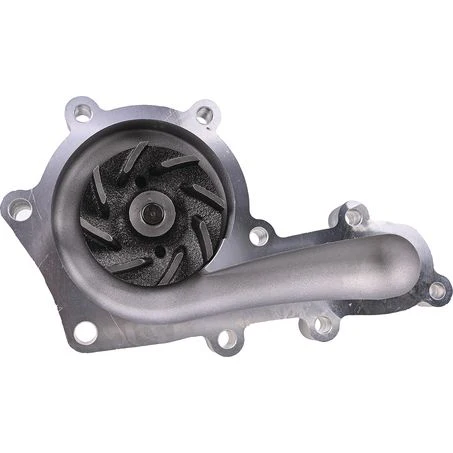

OEX WP3106X Water Pump | Toyota 4.2L 1HZ, 1HD-T, 1HD-FT, 1HD-FTE & 3.5L 1PZ Diesel Engines

The OEX WP3106X Water Pump delivers reliable cooling for a wide range of Toyota Land Cruiser and Coaster models powered by 4.2L 1HZ, 1HD-T, 1HD-FT, 1HD-FTE, and 3.5L 1PZ diesel engines. Built with high-quality materials, advanced bearing and seal technology, and precision engineering, it ensures maximum cooling efficiency and durability in tough New Zealand conditions. Backed by a 2-Year / 40,000km limited warranty, it’s the perfect OEM-quality replacement for both on-road and off-road use.

---

Specifications

• Brand: OEX

• Part No.: WP3106X

• Type: Water Pump

• Warranty: 2-Year / 40,000km Limited Warranty

• Unit of Measure: Each

---

Features

• High-quality precision bearings for extended lifespan

• Induction-hardened bearing shaft for strength and consistent hardening

• Latest seal technology for superior lubrication, wear, and corrosion resistance

• Silicon carbide rotary face seal for greater lubrication and wear resistance than ceramic seals

• Sintered graphite stationary face seal for enhanced corrosion resistance and lubrication

---

Vehicle Fitment

Toyota Coaster

• HDB20, HDB30, HDB31 – 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Injection 118kW Bus AWD [01/90 – 01/93]

• HDB50, HDB51 – 4.2L 1HD-FTE SOHC 24v Turbo Diesel Direct Injection 150kW Bus RWD [07/99 – 07/04]

• HDB50, HDB51 – 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Injection 118kW Bus AWD [01/93 – On]

• HZB30R, HZB31R, HZB36R – 4.2L 1H-Z SOHC 12v Diesel 92kW Bus RWD [10/87 – 01/93]

• HZB46V, HZB56V – 4.2L 1H-Z SOHC 12v Diesel 96kW Bus RWD [01/93 – 08/08]

• HZB50 – 4.2L 1H-Z SOHC 12v Diesel 94kW Bus RWD [01/93 – On]

Toyota Land Cruiser

• HDJ100 – 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Injection 123kW SUV AWD [01/98 – 07/02]

• HDJ100 – 4.2L 1HD-FTE SOHC 24v Turbo Diesel Direct Injection 150kW SUV AWD [01/98 – 08/07]

• HDJ101K – 4.2L 1HD-FTE SOHC 24v Turbo Diesel Direct Injection 153kW SUV AWD [01/98 – 08/07]

• HDJ78, HDJ78R – 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Injection 122kW SUV AWD [08/01 – 02/07]

• HDJ79R – 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Injection 122kW Pickup AWD [08/01 – 01/07]

• HDJ80 – 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Injection 118kW SUV AWD [08/92 – 12/97]

• HDJ80, HDJ81V – 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Injection 125kW SUV AWD [01/95 – 12/97]

• HDJ81 – 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Injection 123kW SUV AWD [01/90 – 12/97]

• HZJ105 – 4.2L 1H-Z SOHC 12v Diesel 96kW SUV AWD [03/98 – 08/07]

• HZJ70RV, HZJ71V, HZJ75... – 4.2L 1H-Z SOHC 12v Diesel 96kW SUV AWD [01/90 – On]

• HZJ71, HZJ73 – 4.2L 1HZ Diesel SUV AWD [08/99 – 08/04]

• HZJ75RP, HZJ79R – 4.2L 1H-Z SOHC 12v Diesel 96kW Pickup AWD [01/90 – 02/07]

• HZJ77 – 4.2L 1H-Z SOHC 12v Diesel 99kW SUV AWD [04/90 – 07/99]

• HZJ80 – 4.2L 1H-Z SOHC 12v Diesel 94kW SUV AWD [01/90 – 12/97]

• HZJ80, HZJ81 – 4.2L 1H-Z SOHC 12v Diesel 99kW SUV AWD [01/90 – 12/97]

• PZJ70, PZJ70RV, PZJ73 – 3.5L 1PZ SOHC 10v Diesel 72kW SUV AWD [01/90 – 08/91]

• PZJ77 – 3.5L 1PZ Diesel SUV AWD [04/90 – 12/94]
