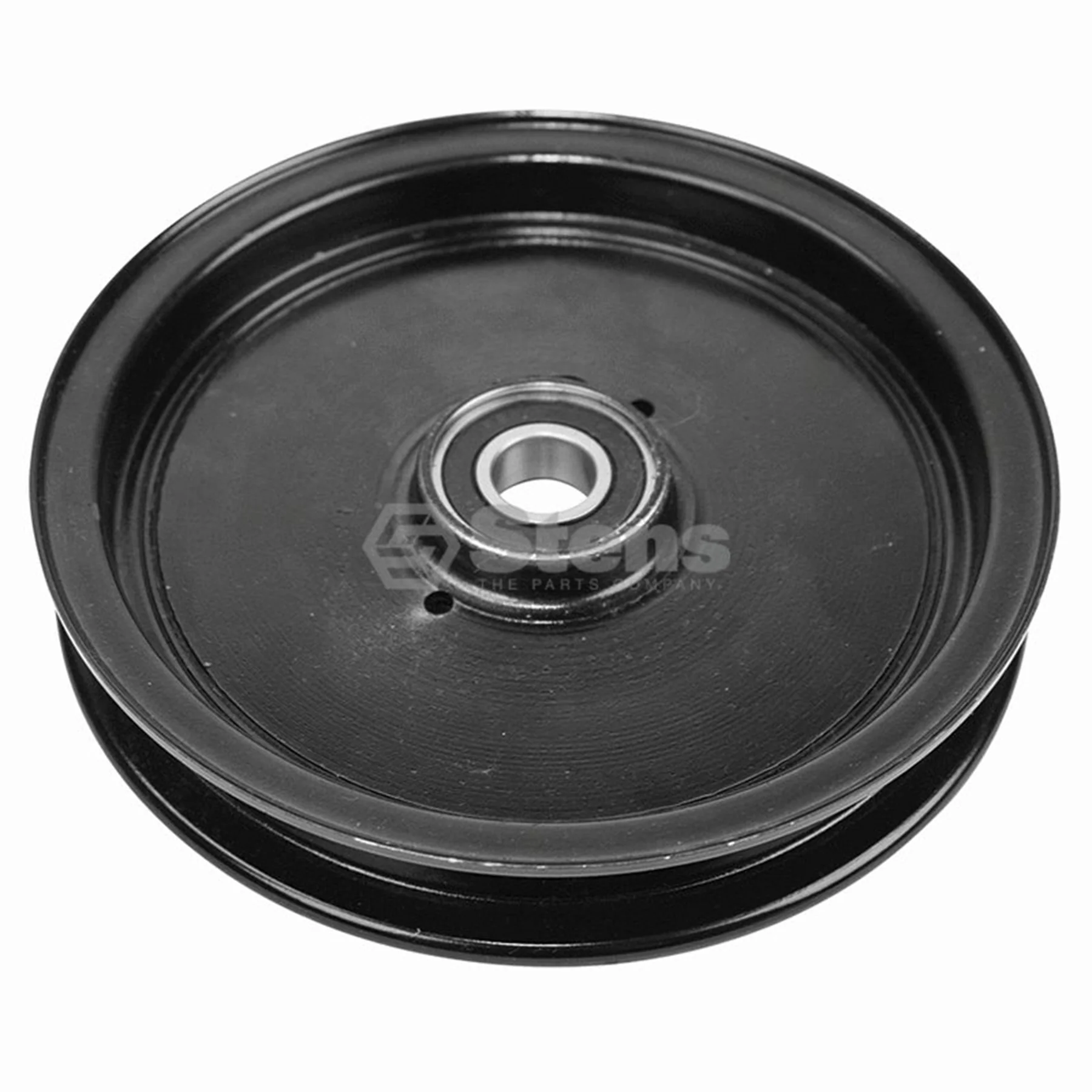

Toro #1-633109 Idler Pulley
HomeStore

Toro #1-633109 Idler Pulley

Toro #1-633109 Idler Pulley

$15.48

Original: $44.24

-65%
Toro #1-633109 Idler Pulley—

$44.24

$15.48

The Story

OEM Part No: 1633109
OD: 6 3/4" (171mm)
Fits 72" cut models.
  • For explanation of letters, refer to the drawing by clicking on More Info
  • For heavier load applications
  • Single row of bearings with double sealed sides
  • EXMARK PARTS: 1-633109, 116-4667, 633109
  • TORO PARTS: 1-633109, 126-7685, 24 014 49-S, 24-04149-S
  • Fits Model - Toro: 60" and 72" Z 500'S Z Master; 74260 Z 597 with 60" and 72" deck
  • Fits Model - Exmark: Lazer Z and Lazer XP with 60" and 72" deck
Height
1 1/8"
ID
11/16"
Made By
An OEM Supplier
Material
Metal
OD
6 3/4"
Pulley Spec (see diagram) A
6 3/4"
Pulley Spec (see diagram) B
6"
Pulley Spec (see diagram) C
11/16"
Pulley Spec (see diagram) D
3/4"
Pulley Spec (see diagram) E
7/32"
Pulley Spec (see diagram) F
7/32"
Pulley Spec (see diagram) V
1 1/8"
Height Inside Diameter Outside Diameter
1 3⁄16" (30mm) 21⁄32" (16mm) 6 3⁄4" (171mm)
Toro #1-633109 Idler Pulley - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

OEM Part No: 1633109
OD: 6 3/4" (171mm)
Fits 72" cut models.
  • For explanation of letters, refer to the drawing by clicking on More Info
  • For heavier load applications
  • Single row of bearings with double sealed sides
  • EXMARK PARTS: 1-633109, 116-4667, 633109
  • TORO PARTS: 1-633109, 126-7685, 24 014 49-S, 24-04149-S
  • Fits Model - Toro: 60" and 72" Z 500'S Z Master; 74260 Z 597 with 60" and 72" deck
  • Fits Model - Exmark: Lazer Z and Lazer XP with 60" and 72" deck
Height
1 1/8"
ID
11/16"
Made By
An OEM Supplier
Material
Metal
OD
6 3/4"
Pulley Spec (see diagram) A
6 3/4"
Pulley Spec (see diagram) B
6"
Pulley Spec (see diagram) C
11/16"
Pulley Spec (see diagram) D
3/4"
Pulley Spec (see diagram) E
7/32"
Pulley Spec (see diagram) F
7/32"
Pulley Spec (see diagram) V
1 1/8"
Height Inside Diameter Outside Diameter
1 3⁄16" (30mm) 21⁄32" (16mm) 6 3⁄4" (171mm)
