Meta Title: OEX Starter Motor LXS9308 12V 10Th CW – Suits Case IH, Bedford, International

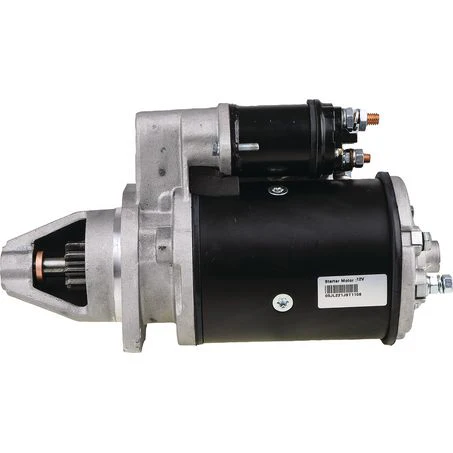

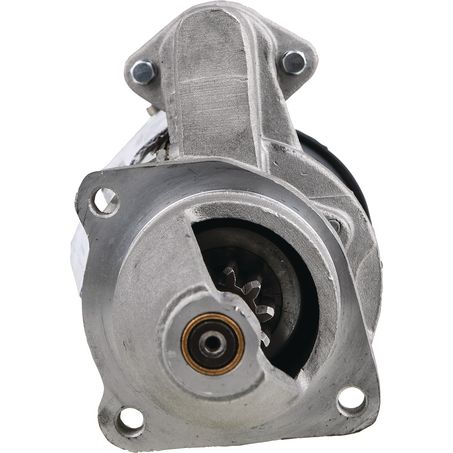

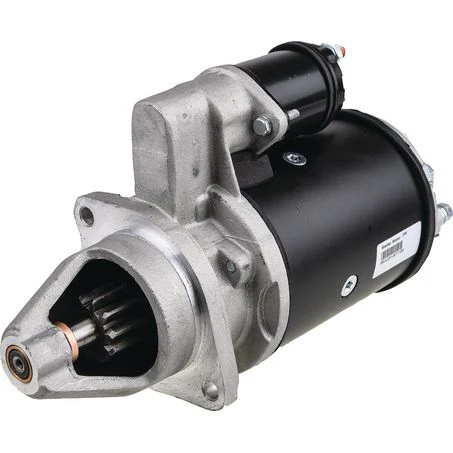

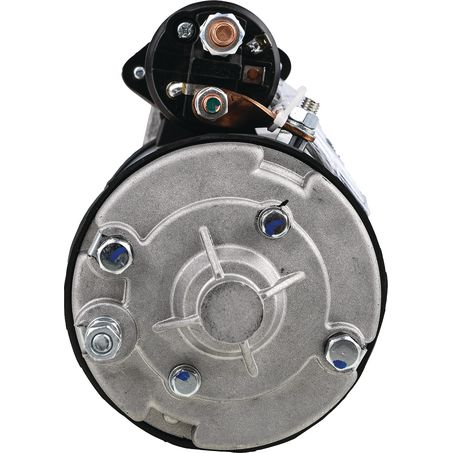

The OEX LXS9308 is a robust 12V, 10-tooth, clockwise-rotation Lucas-style starter motor, specifically engineered for heavy commercial and agricultural applications. This 2.8kW starter is a direct OE replacement for a broad range of Bedford, Case IH, and International Harvester tractors, trucks, and crawlers. Trusted for reliability and backed by OEX’s nationwide warranty, it’s the preferred solution for hardworking NZ farmers and fleet operators needing strong, consistent starts.

Features:

• Heavy-duty Lucas style unit for tractors, trucks, and crawlers

• Powerful 2.8kW output for reliable starting of large diesel engines

• 10-tooth pinion, 3-hole mount, and robust construction

• OE-quality fit and performance, ideal for replacement and restoration

• Comprehensive OEX nationwide warranty

• Suits a wide range of popular Case IH, International, and Bedford diesel models

Specifications:

• Voltage: 12V

• Power: 2.8kW

• Number of Teeth: 10

• Rotation: Clockwise (CW)

• Suits Unit Make: Lucas

• Flange Diameter: 89mm

• Mount Centres (A): 127mm

• Mount Centres (B): 90mm

• Mount Centres (C): 90mm

• Mount Hole Diameter: 11mm

• Overall Length: 330mm

• Pinion at Rest: 47mm

• Pinion Diameter: 40mm

• Starter Mount Type: 3 Hole

• Wet/Dry Clutch: Dry

• Weight: 12.42kg

• New / Remanufactured: New

OEM Part No.: LXS9308
Fits:

• Bedford:

  • TK/MK 214 3.5L Diesel, Platform/Chassis [1959–1986]

• Case IH:

  • 3220, 395, 4210, 4230, 4240, 433, 533/A, 540, 633A, 640A, 695, 744, CX 710, CX 810, V433, V533, V633 Tractors/Headers [1974–on]

• International ACCO:

  • 1730C, 1830C, 1830D 5.9L D358 Diesel Platform/Chassis [1983–1988]

• International Harvester:

  • 2400 GD, 2500GD, 484, 674, 685, 743, 743XL, 743XLA, 784, 744, 745 S, 745 XL, 745 XLA Tractors [1974–on]

  • TD6A, TD7E, TD8A, TD8B Crawlers/Tractors [1969–on]

• (See listing for specific model/variant compatibility. Always confirm with original for best fit.)
