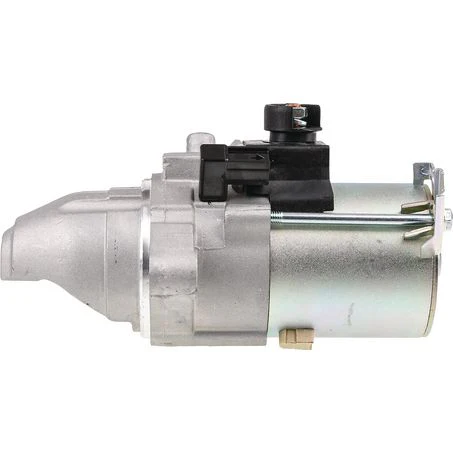

MXS819 OEX Starter Motor – 12V 9T CCW for Honda Hybrid Models

The MXS819 OEX Starter Motor is a high-quality, OEM-equivalent replacement designed for select Honda hybrid models. Manufactured to strict specifications, it delivers reliable cranking power while withstanding the unique demands of hybrid vehicle starting systems.

---

Key Features

• Precision-engineered for optimal performance and long service life

• Suits 12V systems, 9-tooth pinion gear, CCW rotation

• High-quality Mitsuba-style construction

• Voltage drop protection advice included to prevent solenoid contact damage

• New (not remanufactured) unit for consistent reliability

---

Technical Specifications

• Flange Diameter: 75mm

• Mount Centres: 110mm

• Mount Hole Diameter: 11.5mm

• Nose Cone Length: 70mm

• Overall Length: 204mm

• Pinion at Rest: 39mm

• Pinion Diameter: 30mm

• Power Rating: 1.0kW

• Starter Mount Type: 2-Hole

• Clutch Type: Dry

• OEM Reference: SM-71003-PO

• Weight: 2.62kg

---

Compatible Vehicles

• Honda Civic FD3 VIII IMA – 1.3L LDA2 SOHC 8v Hybrid (Auto) [01/06 – 12/12]

• Honda Civic FD3 VIII IMA – 1.3L LDA2 SOHC 8v Hybrid (Auto) [01/10 – 02/12]

• Honda Civic / Civic Ferio ES9 VII IMA – 1.3L LDA1 SOHC 8v Hybrid (Auto) [10/03 – 09/05]

• Honda Fit / Jazz GP1 III Hybrid – 1.3L LDA3 SOHC 8v Hybrid (Auto) [04/11 On]

• Honda Insight ZE2 IMA – 1.3L LDA3 SOHC 8v Hybrid (Auto) [04/09 On]

---

Important Installation Note

Voltage drop to the starter can cause the solenoid contacts to chatter and burn. Always check battery condition and cable integrity before installing a new starter motor.
