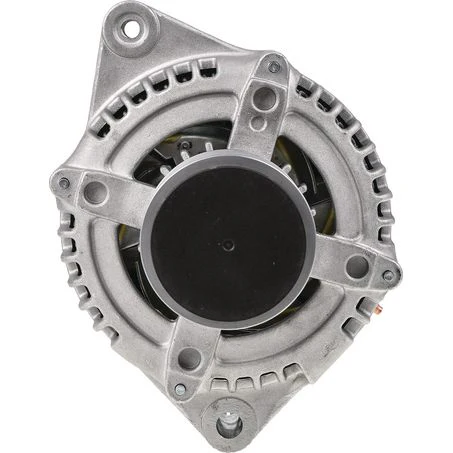

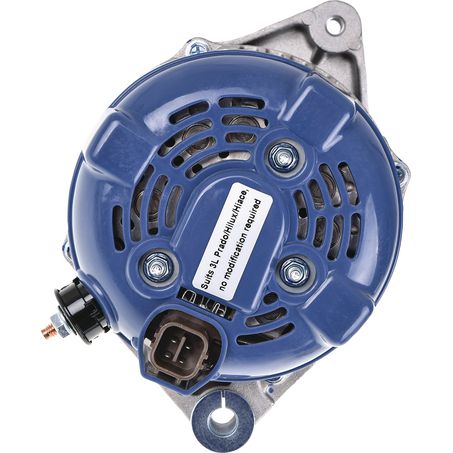

OEX Alternator 12V 130A Denso Style – DXA552M

The OEX DXA552M is a premium 12V, 130A alternator designed as a direct-fit replacement for a large range of Toyota diesel commercial vehicles, including Hiace, Hilux, Dyna, Toyoace, Land Cruiser Prado, and Regius Ace. Featuring Denso style internals, this unit is robust, reliable, and ideal for heavy-duty use in tough New Zealand conditions.

Important:

• If replacing an 85A alternator with this 130A unit (or the 160A version), you must upgrade the battery cable and fuse from alternator to battery for safety and reliable performance.

• Interchangeable with DXA552 and DXA552U.

• 3-year passenger / 1-year commercial warranty for peace of mind.

Features:

• High output 130A for improved charging performance

• Built to OE (Denso) standards – fits and performs like original

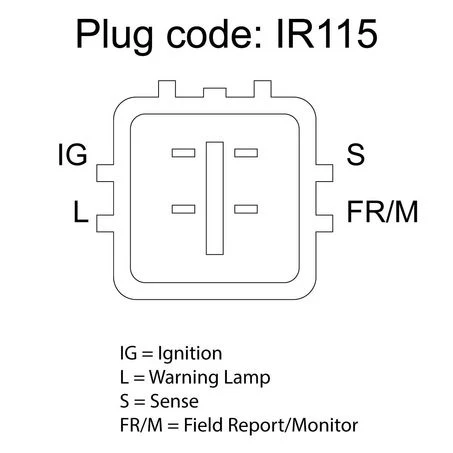

• Internal regulator (IR115)

• 7-groove pulley, clockwise rotation

• Heavy-duty construction, built for NZ workhorses

• Supplied brand new – not reconditioned

Specifications:

• Voltage: 12V

• Amperage: 130A

• Pulley: 7 groove

• Pulley Diameter: 58mm

• Mount Centres: 165mm

• Mount Type: Single leg

• Thread: M8 x 1.25

• Weight: 6.5kg

• Regulator: Internal (IR115)

• Rotation: CW (Clockwise)

• Condition: New

OEM Part No.:
27060-30190, 27060-30300, 27060-30310 (verify against vehicle/build plate before ordering)

Full Compatibility – Fits:

• Toyota Hiace & Commuter
  KDH200, KDH201, KDH202, KDH203, KDH205, KDH206, KDH211, KDH212, KDH221, KDH222, KDH223, KDH225, KDH227
  D-4D 2.5L 2KD-FTV & 3.0L 1KD-FTV Diesel (Van, Bus, RWD, AWD) [01/05–12/20]

• Toyota Dyna/Toyoace
  KDY220, KDY221, KDY230, KDY231, KDY240, KDY241, KDY250, KDY270, KDY271, KDY280, KDY281, KDY290
  2.5L 2KD-FTV & 3.0L 1KD-FTV Diesel (Cab Chassis, Bus, AWD, RWD) [08/01–ON]

• Toyota Hilux/Hilux Surf/4Runner/Tacoma
  KDN170, KDN185, KUN16, KUN26, KUN36
  2.5L/3.0L D-4D Diesel (Utility, Cab Chassis, AWD, RWD) [07/00–06/15]

• Toyota Land Cruiser Prado
  KDJ90, KDJ95, KDJ120, KDJ121, KDJ125, KDJ150, KDJ155
  3.0L D-4D Diesel (SUV, AWD) [02/00–ON]

• Toyota Master Ace Surf
  CR21, CR28
  2.0L 2C-T SOHC 8v Turbo Diesel 4cyl Bus RWD [02/85–10/93]
