OEX MXA2076 Alternator – 12 V 80 A Mitsubishi Style Fits Suzuki Swift, Baleno, SX4 & Grand Vitara
HomeStore

OEX MXA2076 Alternator – 12 V 80 A Mitsubishi Style Fits Suzuki Swift, Baleno, SX4 & Grand Vitara

OEX MXA2076 Alternator – 12 V 80 A Mitsubishi Style Fits Suzuki Swift, Baleno, SX4 & Grand Vitara

$234.61
OEX MXA2076 Alternator – 12 V 80 A Mitsubishi Style Fits Suzuki Swift, Baleno, SX4 & Grand Vitara—
$234.61

The Story

Reliable, OE‑equivalent OEX MXA2076 Alternator engineered for high performance and durability in Suzuki petrol engines.
Designed in a Mitsubishi‑style housing with a 4‑pin internal regulator (IR43), this unit provides consistent 80 A charging output and long‑life bearings suited to New Zealand driving conditions.

Built to exacting standards, the MXA2076 delivers trouble‑free installation and reliable charging for everyday passenger and light commercial vehicles.

Key Features:

  • 12 V, 80 A output – OE‑equivalent performance

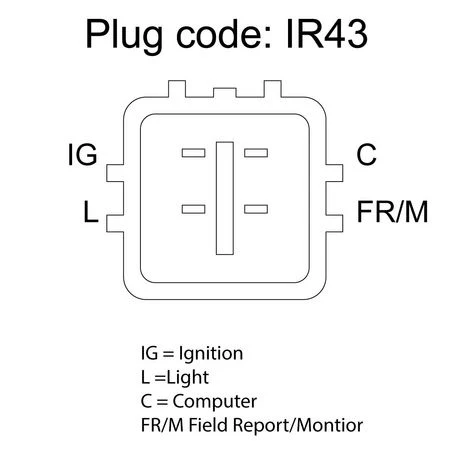

  • Internal regulator (IR43) with 4‑pin square plug

  • 5‑groove pulley (55 mm OD) for modern serpentine belts

  • Heavy‑duty bearings for extended service life

  • Precision‑machined single‑leg mount (164 mm centre‑to‑centre)

  • 3‑year passenger / 1‑year commercial warranty

  • 100 % new unit – no core return required

  • Suits Mitsubishi‑style mounts used in Suzuki models

Specifications

Specification Value
Voltage  12 V
Amperage / Output  80 A
Mount Type  Single Leg
Mount Centre to Centre  164 mm
Pivot Hole Diameter  10 mm
Adjusting Hole Diameter  M8 × 1.25
Mount Leg Thickness  58 mm
Pulley Type  5 Groove
Pulley Outside Diameter  55 mm
Regulator Type  Internal (IR43 4‑Pin Square Plug)
Weight  4.64 kg
Condition  New
Warranty  3 yr Passenger / 1 yr Commercial



Fits:

  • Suzuki Baleno EW, FW – 1.4 L K14B DOHC 16 V Petrol (06/16 on)

  • Suzuki Swift AZG414 IV – 1.4 L K14B DOHC 16 V (02/11 on) – 4‑pin square regulator plug

  • Suzuki Swift RS415 / ZC21S III – 1.5 L M15A DOHC 16 V (02/05 on) – 4‑pin square regulator plug

  • Suzuki Swift ZA32S / ZC32S IV – 1.6 L M16A DOHC 16 V (01/12 on) – 4‑pin square regulator plug

  • Suzuki Swift ZC31S III – 1.6 L M16A DOHC 16 V (05/06 on) – 4‑pin square regulator plug

  • Suzuki Escudo / Grand Vitara JB420 II – 2.0 L J20A DOHC 16 V (10/05 – 02/15) – 4‑pin square regulator plug

  • Suzuki Escudo / Grand Vitara SQ420 I – 2.0 L J20A DOHC 16 V (03/98 – 07/03) – 4‑pin square regulator plug

  • Suzuki SX4 RW415 / RW416 / RW420 – 2.0 L J20A DOHC 16 V (10/07 – 01/10) – 4‑pin square regulator plug

  • Suzuki SX4 YA41S / YB41S – 2.0 L J20A DOHC 16 V (06/06 on) – 4‑pin square regulator plug

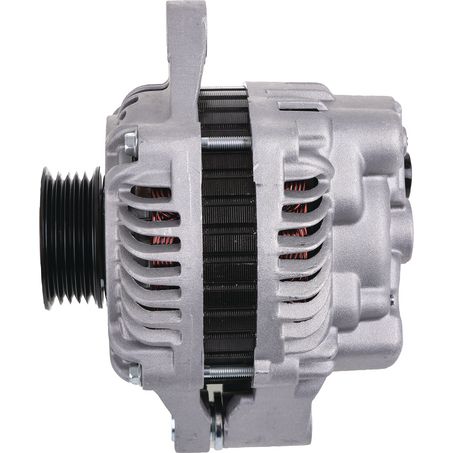

OEX MXA2076 Alternator – 12 V 80 A Mitsubishi Style Fits Suzuki Swift, Baleno, SX4 & Grand Vitara - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

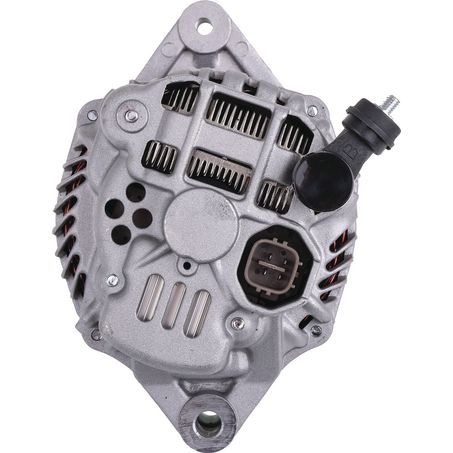

OEX MXA2076 Alternator – 12 V 80 A Mitsubishi Style Fits Suzuki Swift, Baleno, SX4 & Grand Vitara - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

OEX MXA2076 Alternator – 12 V 80 A Mitsubishi Style Fits Suzuki Swift, Baleno, SX4 & Grand Vitara - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Reliable, OE‑equivalent OEX MXA2076 Alternator engineered for high performance and durability in Suzuki petrol engines.
Designed in a Mitsubishi‑style housing with a 4‑pin internal regulator (IR43), this unit provides consistent 80 A charging output and long‑life bearings suited to New Zealand driving conditions.

Built to exacting standards, the MXA2076 delivers trouble‑free installation and reliable charging for everyday passenger and light commercial vehicles.

Key Features:

  • 12 V, 80 A output – OE‑equivalent performance

  • Internal regulator (IR43) with 4‑pin square plug

  • 5‑groove pulley (55 mm OD) for modern serpentine belts

  • Heavy‑duty bearings for extended service life

  • Precision‑machined single‑leg mount (164 mm centre‑to‑centre)

  • 3‑year passenger / 1‑year commercial warranty

  • 100 % new unit – no core return required

  • Suits Mitsubishi‑style mounts used in Suzuki models

Specifications

Specification Value
Voltage  12 V
Amperage / Output  80 A
Mount Type  Single Leg
Mount Centre to Centre  164 mm
Pivot Hole Diameter  10 mm
Adjusting Hole Diameter  M8 × 1.25
Mount Leg Thickness  58 mm
Pulley Type  5 Groove
Pulley Outside Diameter  55 mm
Regulator Type  Internal (IR43 4‑Pin Square Plug)
Weight  4.64 kg
Condition  New
Warranty  3 yr Passenger / 1 yr Commercial



Fits:

  • Suzuki Baleno EW, FW – 1.4 L K14B DOHC 16 V Petrol (06/16 on)

  • Suzuki Swift AZG414 IV – 1.4 L K14B DOHC 16 V (02/11 on) – 4‑pin square regulator plug

  • Suzuki Swift RS415 / ZC21S III – 1.5 L M15A DOHC 16 V (02/05 on) – 4‑pin square regulator plug

  • Suzuki Swift ZA32S / ZC32S IV – 1.6 L M16A DOHC 16 V (01/12 on) – 4‑pin square regulator plug

  • Suzuki Swift ZC31S III – 1.6 L M16A DOHC 16 V (05/06 on) – 4‑pin square regulator plug

  • Suzuki Escudo / Grand Vitara JB420 II – 2.0 L J20A DOHC 16 V (10/05 – 02/15) – 4‑pin square regulator plug

  • Suzuki Escudo / Grand Vitara SQ420 I – 2.0 L J20A DOHC 16 V (03/98 – 07/03) – 4‑pin square regulator plug

  • Suzuki SX4 RW415 / RW416 / RW420 – 2.0 L J20A DOHC 16 V (10/07 – 01/10) – 4‑pin square regulator plug

  • Suzuki SX4 YA41S / YB41S – 2.0 L J20A DOHC 16 V (06/06 on) – 4‑pin square regulator plug
