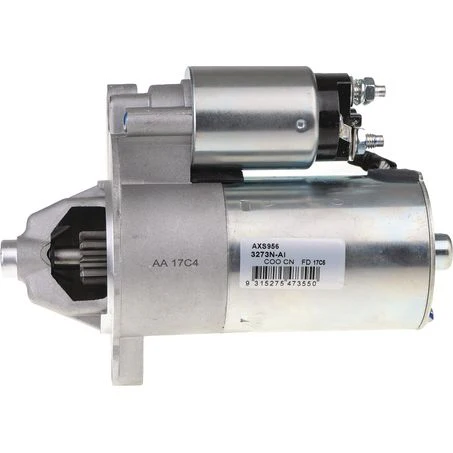

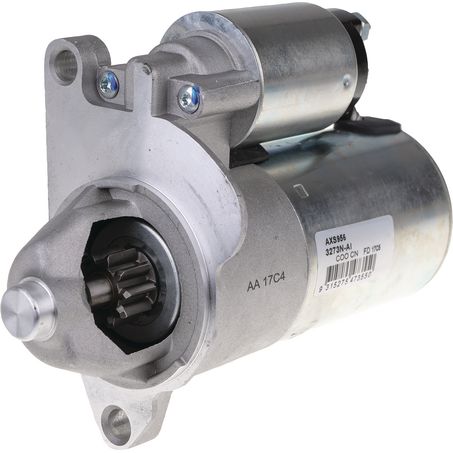

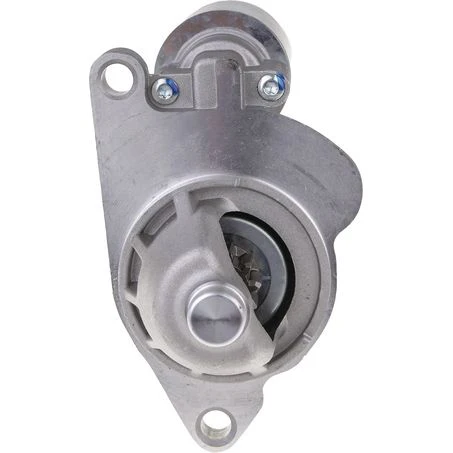

OEX AXS956 Starter Motor – 12V 10Th CW Autolite Style for Ford Courier, Explorer & Mazda Bravo

OEX AXS956, a premium-quality 12V 10-tooth CW (clockwise) starter motor, Autolite style. Built for reliability and precise fitment, this unit is designed specifically for automatic applications on select Ford Courier, Ford Explorer, and Mazda Bravo/Bounty 4.0L petrol models. Ideal for customers wanting dependable performance and long life, this starter motor is a direct replacement for OEM units and features robust construction to handle New Zealand driving conditions.

Features:

• 12V, 1.4kW output for strong, reliable starting

• 10-tooth pinion, clockwise rotation (CW)

• Suits Autolite applications – direct fit for select Ford/Mazda models

• For automatic transmission models only
  (For manual, use BXF004M)

• 2-hole mounting, 76mm flange, 133mm mount centres

• 3-year warranty (passenger vehicles) / 1-year (commercial use)

• Robust design with 28mm pinion, 224mm overall length

Specifications:

• Voltage: 12V

• Power Rating: 1.4kW

• Rotation: Clockwise (CW)

• Number of Teeth: 10

• Flange Diameter: 76mm

• Mount Centres (A): 133mm

• Mount Hole Diameter: 11mm

• Nose Cone Length: 53mm

• Overall Length: 224mm

• Pinion at Rest: 16mm

• Pinion Diameter: 28mm

• Starter Mount Type: 2 Hole

• Weight: 3.52kg

• Clutch: Dry

• Suits Unit Make: Autolite

• New/Remanufactured: New

OEM Part No.: AXS956
Fits:

• Ford Courier PH i 4.0L V6 Petrol (AWD/RWD, 02/05–12/06) – Automatic only

• Ford Explorer UN, UP, UQ, US 4.0L/4.6L V6/V8 Petrol (AWD, 09/96–01/08) – Automatic only

• Mazda B-Series, Bravo, Bounty 4.0L V6 Petrol (AWD/RWD, 09/00–11/06) – Automatic only
