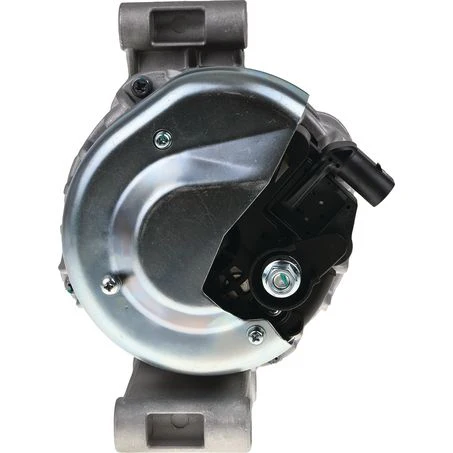

OEX BXA010 Alternator 12V 130A Bosch Style – Fits Ford Ranger & Mazda BT-50 (2011–2015)

The OEX BXA010 Alternator delivers a robust 12V, 130A output with Bosch-style pad mounting for a secure fit. Engineered for reliability and long service life, this alternator is an exact-fit replacement for a wide range of Ford Ranger PX and Mazda BT-50 models from 2011 to 2015.

Key Features:

• Voltage: 12V, Output: 130A

• Bosch-style pad mount with 175mm centre-to-centre spacing

• Internal regulator for consistent voltage control

• 7-groove pulley, 59mm OD

• Heavy-duty construction for high-load applications

• 60mm mounting leg thickness for strength and stability

Technical Specifications:

• Mount Hole Diameter: 11mm

• Mount Leg Thickness: 60mm

• Pulley Section: 7 Groove

• Weight: 7kg

---

Vehicle Fitment

Ford Ranger

• PX 2.2L P4-AT DOHC 16v Turbo Diesel 110kW Cab Chassis AWD & RWD (11/11–06/15) – Check mounting leg length (60mm)

• PX 2.2L P4-AT DOHC 16v Turbo Diesel 110kW Utility AWD & RWD (11/11–06/15) – Check mounting leg length (60mm)

• PX 3.2L P5-AT DOHC 20v Turbo Diesel 147kW Cab Chassis AWD (11/11–06/15)

• PX 3.2L P5-AT DOHC 20v Turbo Diesel 147kW Utility AWD & RWD (11/11–06/15)

Mazda BT-50

• B22, B32, UP, UR II 2.2L P4-AT DOHC 16v Turbo Diesel 110kW Utility RWD (11/11–06/20)

• UP0YF1, UR0YF1 II 3.2L P5-AT DOHC 20v Turbo Diesel 147kW Utility AWD & RWD (11/11–06/15)

• UP0YF1, UR0YF1 3.2L P5-AT DOHC 20v Turbo Diesel 147kW Cab Chassis AWD & RWD (11/11–06/15)

---

Warranty:

• 3 Years (Passenger Vehicles)

• 1 Year (Commercial Vehicles)

Note: This is one of two visually identical alternators with different regulator functions. Confirm OE part number before ordering. The BXA010 replaces the standard pulley version.
