The Story

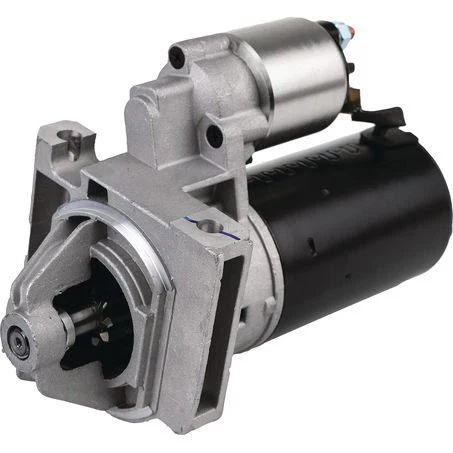

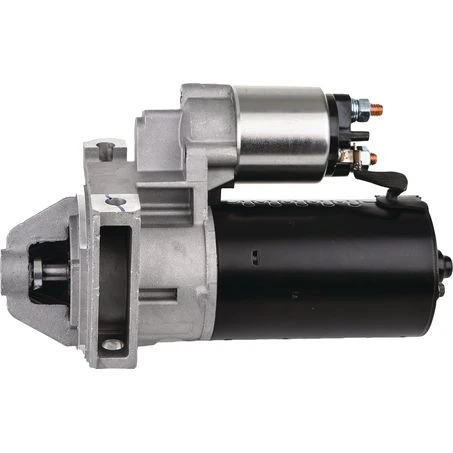

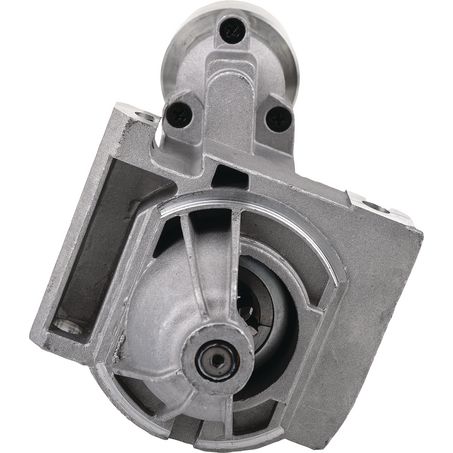

The OEX BXS0105 Starter Motor is a 12-volt, 9-tooth Bosch-style unit designed to deliver powerful, consistent starts for Holden 3.8L V6 engines found in Commodore, Berlina, Calais, Caprice, Statesman, and HSV models from VN to VY.
Engineered to OEM Bosch specifications, this unit provides 1.4kW of cranking power, ensuring reliable performance in both standard and supercharged applications. Built from ISO-certified components and supported by OEX’s comprehensive warranty, the BXS0105 offers trusted durability and long service life in demanding environments.
Key Features
-
12V Bosch-style replacement unit – direct bolt-on for factory fitment.
-
9-tooth CW rotation with planetary reduction gear for high torque output.
-
High-performance 1.4kW motor ensures consistent cranking under load.
-
Manufactured to OEM Bosch standards for exact fit and performance.
-
ISO-certified factory production ensures consistent reliability and quality.
-
Pad mount design for simple installation on Holden 3.8L V6 engines.
-
Comprehensive nationwide OEX warranty – 3 years for passenger, 1 year for commercial.
Specifications
| Specification | Detail |
|---|---|
| Part Number | BXS0105 |
| Brand | OEX |
| Type | Starter Motor |
| Voltage | 12V |
| Power Rating | 1.4kW |
| Rotation | Clockwise (CW) |
| Number of Teeth | 9 |
| Pinion Diameter | 25mm |
| Pinion at Rest | 6mm |
| Flange Diameter | 82mm |
| Mount Centres (A) | 81mm |
| Mount Hole Diameter | 10mm |
| Starter Mount Type | Pad |
| Suits Unit Make | Bosch |
| Overall Length | 240mm |
| Clutch Type | Dry |
| Weight | 3.4kg |
| New / Remanufactured | New |
| Warranty | 3 Years Passenger / 1 Year Commercial |
| Product Group 1 | Rotating Electrical |
| Product Group 2 | Starter Motors |
Vehicle Compatibility
Fits the following vehicles equipped with the 3.8L V6 engine (LG2, LN3, L36, L67):
HOLDEN COMMODORE SERIES (1988–2004)
-
VN / VP / VR / VS / VT / VX / VY – 3.8L LG2, LN3, L36 (Petrol)
-
Supercharged 3.8L L67 models (165–171 kW)
-
VG / VP / VR / VS / VU / VY Utility and One Tonner models
-
Bosch-style unit – suits automatic applications
HOLDEN BERLINA / CALAIS / CAPRICE / STATESMAN (1990–2004)
-
VQ / VR / VS / WH / WK Series – 3.8L V6 Petrol and Supercharged (L67)
-
Includes Calais VT–VY, Caprice VS–WK, and Statesman VR–WK
HSV MODELS
-
HSV Commodore VN–VX – 3.8L V6 & Supercharged L67
-
HSV Senator VT–VX – V8 & V6 Supercharged
-
HSV XU6 & Grange WH (L67 Supercharged 3.8L)
CHEVROLET APPLICATIONS
-
Camaro 3.8L L36 (231 cu V6) Petrol Convertible (1995–2002)
Engine Compatibility:
-
3.8L LG2 / LN3 / L36 (Ecotec) OHV 12V Petrol
-
3.8L L67 Supercharged OHV 12V Petrol
OEM Cross Reference
| Cross Reference | Description |
|---|---|
| OEM Number | Bosch Style (Equivalent to GMH 92046914 / 92057105 / 92047300) |
| Bosch Equivalent | 0 986 017 190 / SR-0432X |
| Engine Series | 3.8L V6 (LG2, LN3, L36, L67) |
| OEX Reference | BXS0105 |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The OEX BXS0105 Starter Motor is a 12-volt, 9-tooth Bosch-style unit designed to deliver powerful, consistent starts for Holden 3.8L V6 engines found in Commodore, Berlina, Calais, Caprice, Statesman, and HSV models from VN to VY.
Engineered to OEM Bosch specifications, this unit provides 1.4kW of cranking power, ensuring reliable performance in both standard and supercharged applications. Built from ISO-certified components and supported by OEX’s comprehensive warranty, the BXS0105 offers trusted durability and long service life in demanding environments.
Key Features
-
12V Bosch-style replacement unit – direct bolt-on for factory fitment.
-
9-tooth CW rotation with planetary reduction gear for high torque output.
-
High-performance 1.4kW motor ensures consistent cranking under load.
-
Manufactured to OEM Bosch standards for exact fit and performance.
-
ISO-certified factory production ensures consistent reliability and quality.
-
Pad mount design for simple installation on Holden 3.8L V6 engines.
-
Comprehensive nationwide OEX warranty – 3 years for passenger, 1 year for commercial.
Specifications
| Specification | Detail |
|---|---|
| Part Number | BXS0105 |
| Brand | OEX |
| Type | Starter Motor |
| Voltage | 12V |
| Power Rating | 1.4kW |
| Rotation | Clockwise (CW) |
| Number of Teeth | 9 |
| Pinion Diameter | 25mm |
| Pinion at Rest | 6mm |
| Flange Diameter | 82mm |
| Mount Centres (A) | 81mm |
| Mount Hole Diameter | 10mm |
| Starter Mount Type | Pad |
| Suits Unit Make | Bosch |
| Overall Length | 240mm |
| Clutch Type | Dry |
| Weight | 3.4kg |
| New / Remanufactured | New |
| Warranty | 3 Years Passenger / 1 Year Commercial |
| Product Group 1 | Rotating Electrical |
| Product Group 2 | Starter Motors |
Vehicle Compatibility
Fits the following vehicles equipped with the 3.8L V6 engine (LG2, LN3, L36, L67):
HOLDEN COMMODORE SERIES (1988–2004)
-
VN / VP / VR / VS / VT / VX / VY – 3.8L LG2, LN3, L36 (Petrol)
-
Supercharged 3.8L L67 models (165–171 kW)
-
VG / VP / VR / VS / VU / VY Utility and One Tonner models
-
Bosch-style unit – suits automatic applications
HOLDEN BERLINA / CALAIS / CAPRICE / STATESMAN (1990–2004)
-
VQ / VR / VS / WH / WK Series – 3.8L V6 Petrol and Supercharged (L67)
-
Includes Calais VT–VY, Caprice VS–WK, and Statesman VR–WK
HSV MODELS
-
HSV Commodore VN–VX – 3.8L V6 & Supercharged L67
-
HSV Senator VT–VX – V8 & V6 Supercharged
-
HSV XU6 & Grange WH (L67 Supercharged 3.8L)
CHEVROLET APPLICATIONS
-
Camaro 3.8L L36 (231 cu V6) Petrol Convertible (1995–2002)
Engine Compatibility:
-
3.8L LG2 / LN3 / L36 (Ecotec) OHV 12V Petrol
-
3.8L L67 Supercharged OHV 12V Petrol
OEM Cross Reference
| Cross Reference | Description |
|---|---|
| OEM Number | Bosch Style (Equivalent to GMH 92046914 / 92057105 / 92047300) |
| Bosch Equivalent | 0 986 017 190 / SR-0432X |
| Engine Series | 3.8L V6 (LG2, LN3, L36, L67) |
| OEX Reference | BXS0105 |
