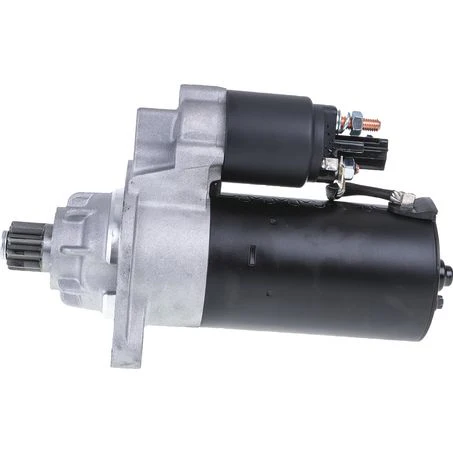

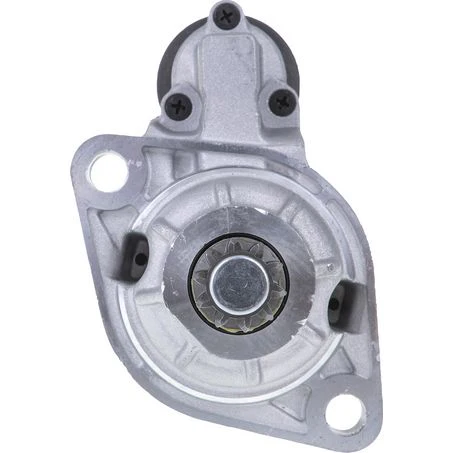

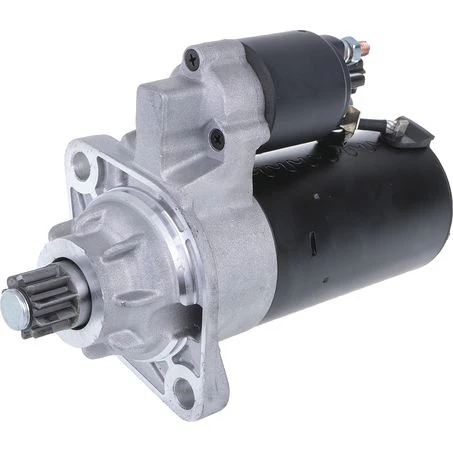

OEX BXS0149 Starter Motor – 12V 2.2kW Bosch Style (Volkswagen T5 2.5L Diesel)

Restore dependable starting performance in your Volkswagen T5 van or bus with the OEX BXS0149. This heavy-duty Bosch-style 12V, 2.2kW starter motor features a 10-tooth pinion and CCW (counter-clockwise) rotation, delivering robust cranking for 2.5L 5-cylinder turbo diesel models. Ideal for trades, fleets, and everyday users—built tough for New Zealand’s conditions and backed by OEX’s trusted 3-year passenger / 1-year commercial warranty. For manual transmission applications only.

Features:

• Direct Bosch-style replacement for Volkswagen T5 2.5L turbo diesel models

• Powerful 2.2kW output, 10-tooth pinion, CCW rotation

• 2-hole mounting, 28mm pinion, 12.5mm shaft

• Designed for manual transmissions (confirm mount position against original)

• Premium OEX quality—new unit, not reconditioned

• 3-year passenger / 1-year commercial warranty

Specifications:

• Voltage: 12V

• Power: 2.2kW

• Pinion Teeth: 10

• Pinion Diameter: 28mm

• Shaft Diameter: 12.5mm

• Rotation: CCW (Counter-Clockwise)

• Mounting: 2-hole, dry type, 111mm spacing

• Flange Diameter: 62mm

• Overall Length: 257mm

• Weight: 4.12kg

• Warranty: 3yr Passenger, 1yr Commercial

OEM Part No.: Bosch

Fits:

• Volkswagen Caravelle/Kombi/Transporter T5 (7EB, 7EJ, 7HB, 7HJ, 7EA, 7EH, 7HA, 7HH, 7FD, 7FE, 7FL, 7FY, 7FZ) 2.5L AXD, BNZ, AXE, BPC SOHC 10v Turbo Diesel Direct Injection 5cyl
  – 96kW Bus/Van/Cab Chassis FWD & AWD [04/03–11/09]
  – 128kW Bus/Van/Cab Chassis FWD & AWD [07/04–11/09]

• Volkswagen Multivan T5 (7EF, 7EM, 7EN, 7HF, 7HM, etc.) 2.5L AXE, BPC SOHC 10v Turbo Diesel Direct Inj. 5cyl 128kW Bus FWD & AWD [04/03–11/09]

Option offered is the OEX Bosch unit. To suit manual applications—mount position must be confirmed against original.
