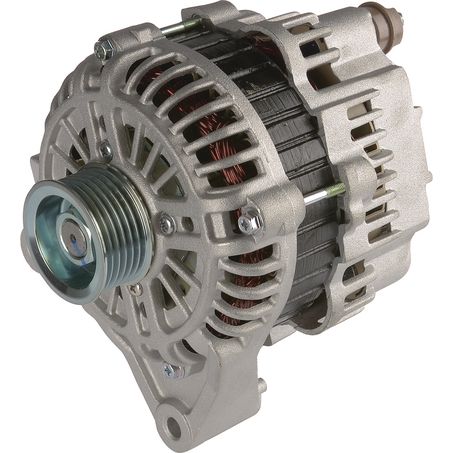

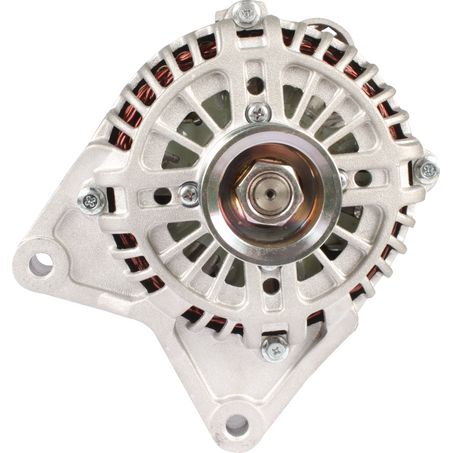

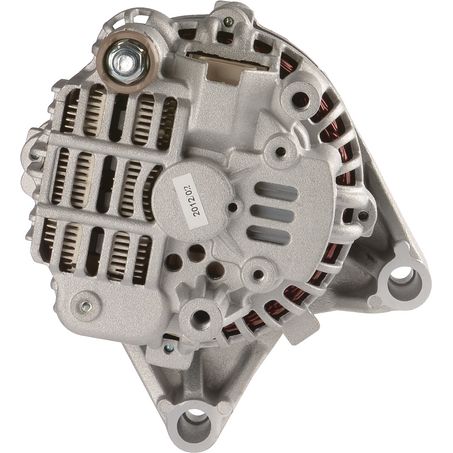

OEX MXA288 Alternator 12V 110A Mitsubishi Style – Ford Falcon AU BA BF Territory

OEX MXA288 Alternator – 12V, 110A, Mitsubishi style – is a premium-quality direct-fit replacement for a range of late-model Ford Falcon, Fairmont, Fairlane, LTD, Territory, and FPV models. Designed for reliability, this brand-new (not remanufactured) alternator delivers maximum charging performance for your vehicle’s electrical demands, including those with higher aftermarket loads.

Warranty: 3 Years (Passenger) / 1 Year (Commercial Use)

---

Key Features

• 12 Volt, 110 Amp Output

• Mitsubishi Style, Internal Regulator

• Mount: Single Leg (Centre-to-centre: 110mm, Leg thickness: 45mm)

• Pulley: 50mm OD, 6 Groove

• Pivot/Adjusting Hole Diameter: 9mm

• Brand New (Not Remanufactured)

• Weight: 6.3kg

Special Notes:

• If replacing an Autolite alternator, you will need an HXK-24 harness & wiring modification. OE connections: A = Sense (S), I = L (Warning Light).

• If your original plug has a single wire, an HXK-36 adapter is needed to properly sense battery voltage.

---

Fitment & Compatibility

This alternator is engineered for a wide range of Ford Falcons, Fairlanes, Fairmonts, Territories, LTD, and FPV vehicles, including the following engines:

• Ford Falcon AU, AUII, AUIII, BA, BF (4.0L INTECH SOHC, Barra 182/190 DOHC, XR6 Turbo, XR8 5.4L Boss V8, LPG & petrol)

• Ford Fairmont & Fairlane AU, BA, BF (incl. VCT)

• Ford LTD AU

• Ford Territory SX, SY (Barra 182/190 DOHC)

• FPV Falcon BF, Super Pursuit, Cobra, etc.

Typical Fitments (includes, but not limited to):

• Ford Falcon AU–BF (1998–2010) Sedan, Wagon, Utility, Cab Chassis, XR6, XR8, XR6 Turbo, V8, LPG

• Ford Territory SX/SY (2004–2011) AWD & RWD

• FPV Super Pursuit, Cobra, etc.

• Fairlane & Fairmont AU/BA/BF

See full fitment list above. If you are unsure, please contact us with your rego or VIN for confirmation.

---

Technical Specifications

• Voltage: 12V

• Amperage: 110A

• Mounting: Single Leg (Centre to Centre: 110mm, Leg Thickness: 45mm)

• Pulley: 50mm OD, 6 Groove

• Regulator Type: Internal

• Pivot Hole/Adjusting Hole: 9mm

• Weight: 6.3kg

---

Special Installation & Compatibility Notes

• Replacing an Autolite alternator will require wiring modification and an HXK-24 harness kit.

• Original connection: A = Sense (S), I = L (Warning Light).

• If your OE plug has only a single wire, use an HXK-36 adapter to ensure proper voltage sensing.

• Always compare your existing alternator with product images/specs, or message us with your OE number or photo for confirmation before purchasing.
