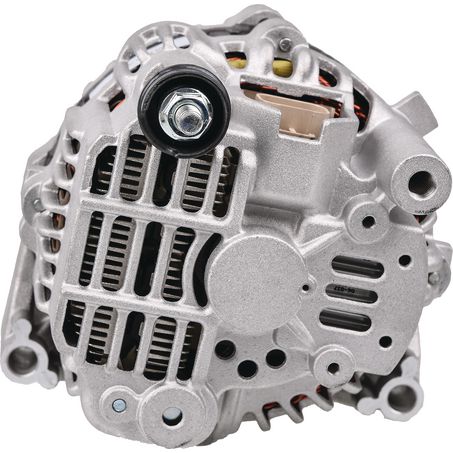

OEX MXA306 Alternator 12V 140A Mitsubishi Style – Fits Holden & HSV V8 Models

OEX MXA306 Alternator, a premium 12V 140A Mitsubishi-style alternator designed for superior performance and reliability. Built to handle high electrical demands, this unit is ideal for a wide range of Holden and HSV V8 applications.

Key Features:

• 12 Volt, 140 Amp Output

• Mitsubishi Style, Single Leg Mount

• Pin Lug Length: 51mm

• Internal Regulator (Standard Type)

• Pulley: 57.5mm OD, 6-Groove

• Heavy-duty construction for long-lasting durability

• Will not interchange with MXA2020, MXA330, or MXA332

• Compatible with adaptor kits HXK-32 and HXK-24

Technical Specifications:

• Voltage: 12V

• Amperage: 140A

• Mounting Centre to Centre: 139mm

• Adjusting Hole Diameter: 10.5mm

• Pivot Hole Diameter: 10.5mm

• Mount Leg Thickness: 50mm

• Weight: 5.96kg

• Pulley Section: 6 Groove

---

Vehicle Fitment

Holden:

• Adventra VY/VZ 5.7L LS1 & 6.0L L76 AWD/Wagon (08/03–12/07)

• Berlina VT/VX/VY/VZ 5.7L LS1 & 6.0L L76 Sedan/Wagon (06/99–06/06)

• Calais VT/VX/VY/VZ 5.7L LS1 & 6.0L L76 Sedan (06/99–06/06)

• Caprice WH/WK/WL 5.7L LS1 & 6.0L L76 Sedan (06/99–07/06)

• Commodore VT/VX/VY/VZ/ VU/One Tonner 5.7L LS1 & 6.0L L76/L2 Sedan/Wagon/Utility (06/99–08/07)

• Crewman VY/VZ 5.7L LS1 & 6.0L L76 Utility AWD/RWD (09/03–07/06)

• Monaro V2 5.7L LS1 Coupe (12/01–09/04)

• Statesman WH/WK/WL 5.7L LS1 & 6.0L L76 Sedan (06/99–07/06)

HSV:

• Avalanche VY Wagon/Utility 5.7L LS1 (10/03–09/04)

• Caprice VR/VS/WH/WK/WL 5.7L LS1/HSV V8 & 6.0L L76/L2 (10/94–12/06)

• Clubsport VT/VX/VY 5.7L LS1 Sedan (07/99–09/04)

• Coupe 4 VZ 5.7L LS1 AWD Coupe (07/04–04/06)

• Grange VS/WH/WK/WL 5.7L LS1/HSV V8 & 6.0L LS2 Sedan (10/96–12/06)

• GTO V2/VX/VZ 5.7L LS1 & 6.0L LS2/L76 Coupe (03/01–11/07)

• GTS VR–VY 5.7L HSV V8 & LS1 Sedan/Coupe (05/94–09/04)

• Maloo VU/VY 5.7L LS1 Utility (03/01–09/04)

• Senator VR–VZ 5.7L HSV V8 & LS1 Sedan/Wagon (08/93–07/06)

• SV300 VX 5.7L LS1 Sedan (09/01–12/01)

• SV99 VT Series 2 5.7L LS1 Sedan (06/99–10/00)

• Statesman VR–VS 5.7L HSV V8 Sedan (10/94–09/96)

---

Warranty:

• 3 Years (Passenger Vehicles)

• 1 Year (Commercial Vehicles)

---

Note: MXA306 will not interchange with MXA2020, MXA330, or MXA332. Please verify unit against original part number before purchase.
